Nextoria Product
PE100B

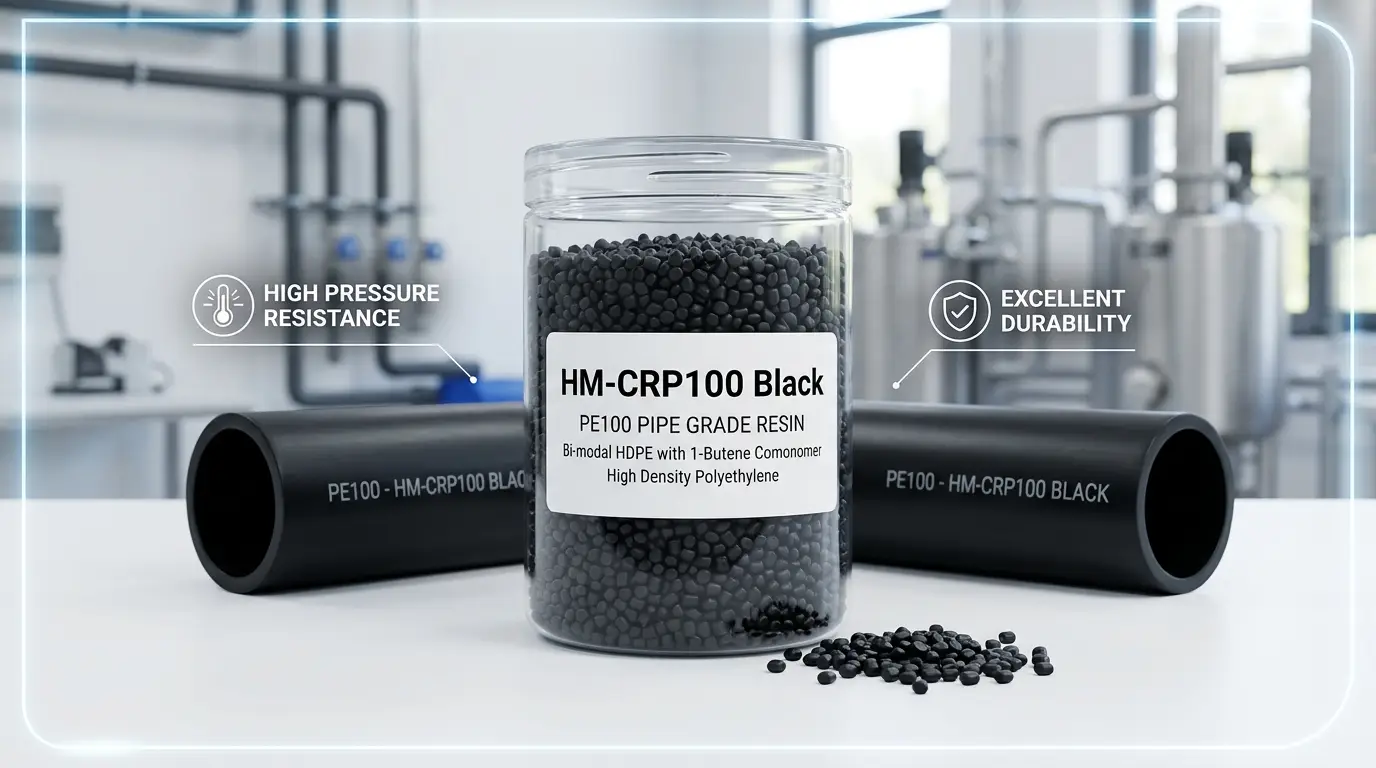

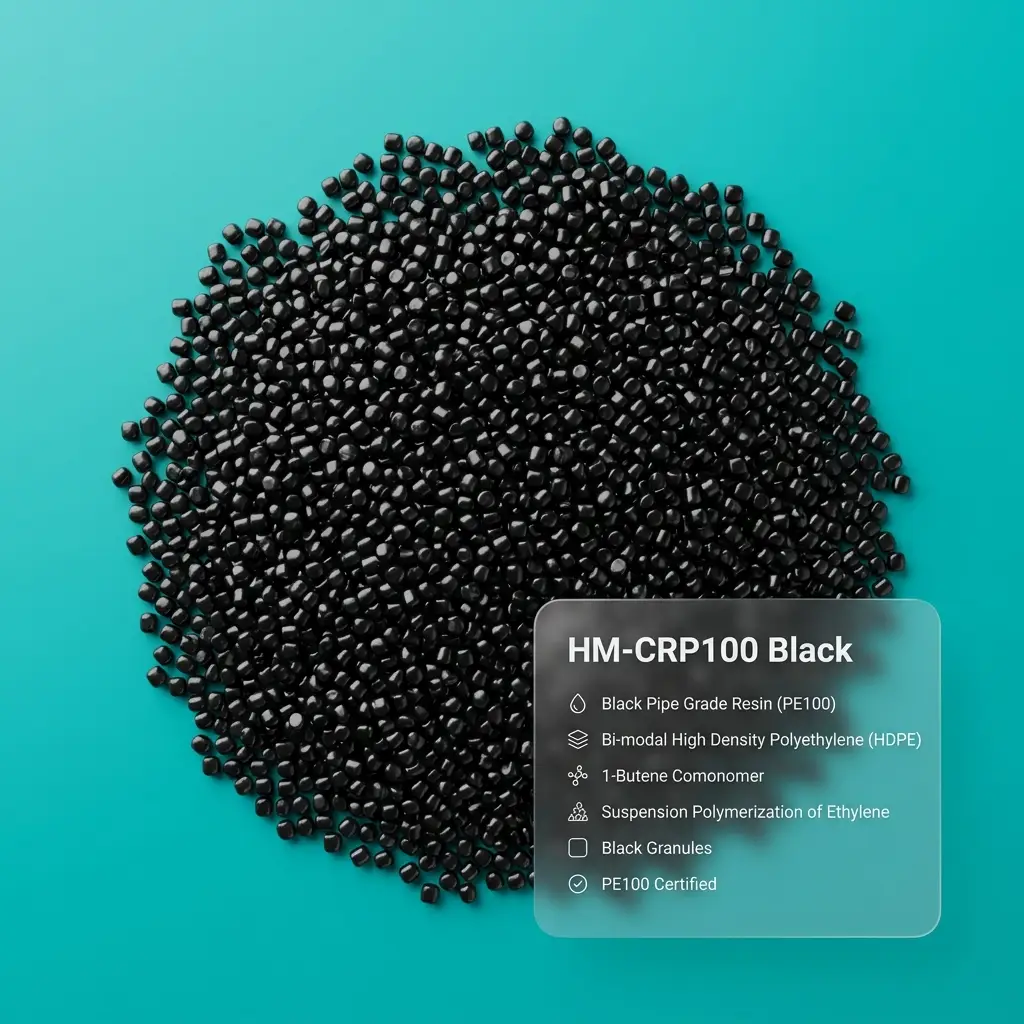

HM-CRP100 Black is a black pipe grade resin (PE100) which is manufactured by suspension polymerization of ethylene monomer. HM-CRP100 Black is a bi-modal high density polyethylene with 1-Butene as comonomer.
APPLICATION
Product Specifications
Key commercial and technical data for sourcing, inquiry, and documentation review.
Melt Index (5)
0.22 g/10 min
ISO 1133
Melt Index (21.6)
6.2 g/10 min
FRR (21.6/5)
28 g/10 min
Density
0.957 g/cm³
ISO 1183
Stress at Yield
>23 MPa
ISO 527
Strain at Break
>500 %
ISO 527
Tensile Modulus
>700 MPa
ISO 527
Charpy Notched Impact (23°C)
>23 kJ/m²
ISO 179
Strain Hardening Modulus (80°C)
>35 MPa
ISO 18488
FNCT (4 MPa, 80°C)
>1000 hr
ISO 18553
ESCR (F50, 10% Igepal)
>5000 hr
ASTM D1693
MRS Classification
10 MPa
ISO 9080
Notched Pipe Test (SCG, 80°C)
>500 hr
ISO 13479
Creep Rapture Strength
>200 hr
ISO 1167
Burst Test
Ductile Failure
ASTM D1599
OIT at 210°C
>30 min
ISO 11357
Melting Point
131±2 °C
ASTM D3418
Carbon Black Dispersion
<3 Grade
ISO 18553
Carbon Black Content
2.0-2.5 %
ISO 6964
